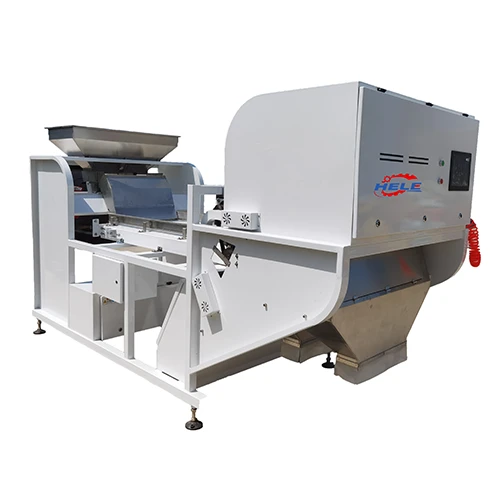

The HL-LD600 is a compact, high-efficiency single-layer belt color sorter engineered for small-to-medium capacity and high-precision sorting. Featuring a smooth belt conveyor and advanced optical recognition system, it achieves a processing capacity of 2–3 T/H with accuracy exceeding 99% and a carryover ratio of ≥20:1. The smooth belt transport eliminates material bounce and breakage, making it ideal for quartz sand, minerals, recycled plastics, and agricultural materials.
Minerals & Ores:
Impurity removal and precision grading for quartz sand, calcite, potash feldspar, barite, fluorite, crushed stone, etc.
Recycled Plastics & Materials:
Efficient color and material sorting for PET flakes, HDPE granules, recycled metal fragments, glass cullet, etc.
Agricultural Products & Nuts:
Premium sorting for fragile or large-particle crops such as peanuts, walnut kernels, cashews, red dates, garlic slices, and dehydrated vegetables.
Compact Single-Layer Belt Conveying:
Smooth belt conveying ensures minimal material breakage, eliminates material bounce, and provides precise optical positioning for 5–50mm particles.
Low Energy Consumption & High ROI:
Operating power of just 2.5 kW/h and low air consumption (< 2 m³/min) significantly reduce daily operating costs while maximizing ROI.
